Aluminum anode type 25 - 10.4 * 4.52 * 1.33inch

Article: B210250

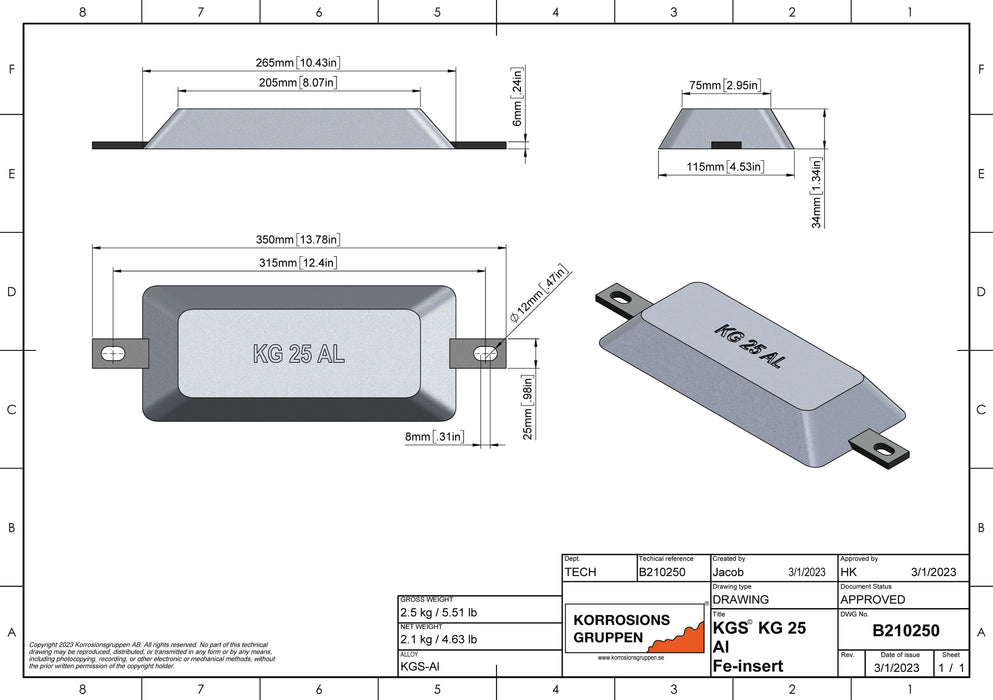

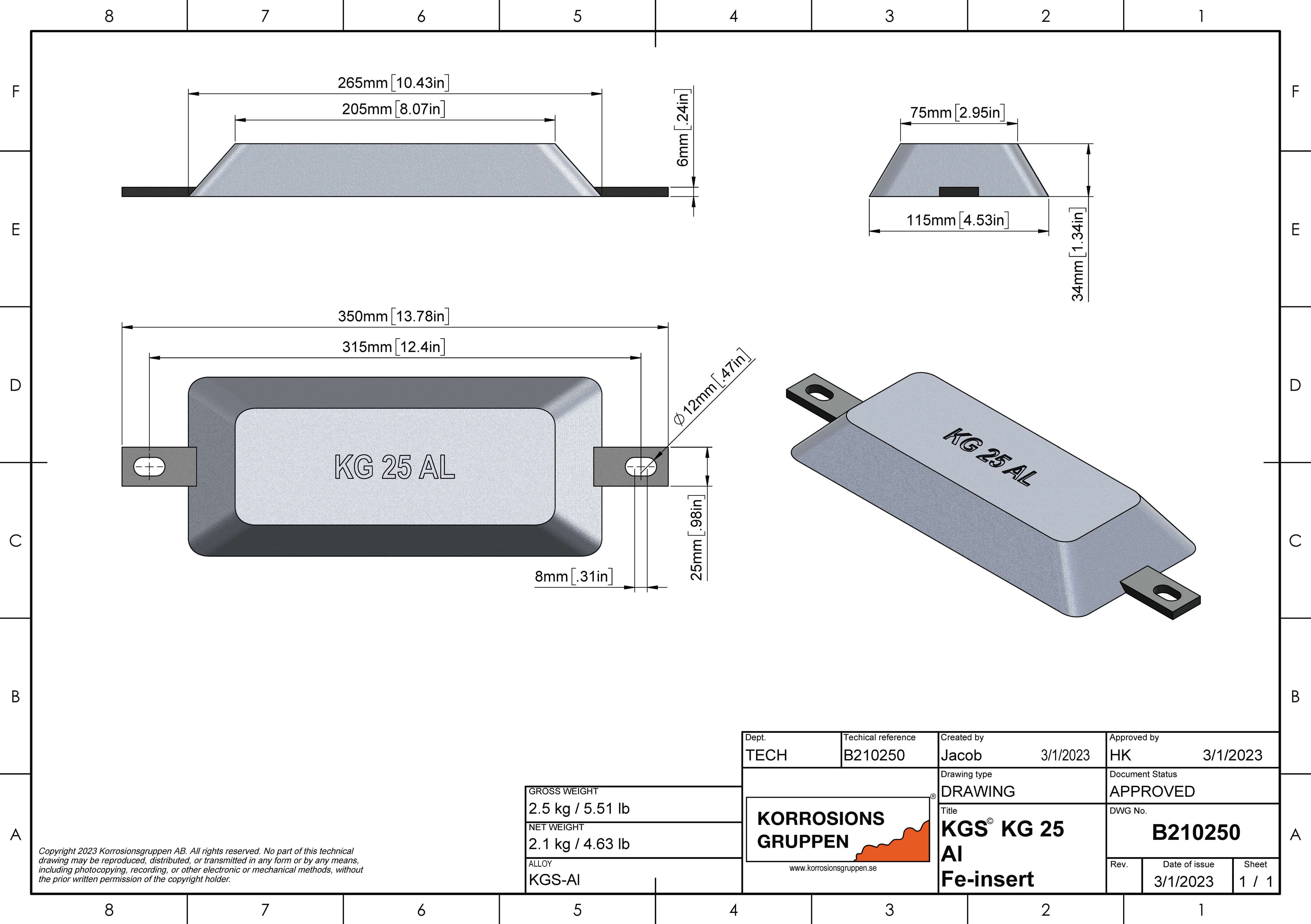

Drawing

  • Total length: 350mm/13.78in
  • Width: 115mm/4.53in
  • Height: 34mm/1.34in
  • Hole distance: 315mm/12.4in
  • Net weight: 2,1kg/4,63lb
  • Gross weight: 2,5kg/5,51lb
  • Reinforcement: FE
Save 31% Save 31%
Original price €50,95
Original price €50,95 - Original price €50,95
Original price €50,95
Current price €34,95
€34,95 - €34,95
Current price €34,95
Availability:
In stock

Bulk discount
PCS Discount Price
5 5 % €33,21 /st
10 10 % €31,46 /st
20 15 % €29,71 /st
50 20 % €27,96 /st
Product description

Product specification

25-AL

Material: Aluminum

Alloy : Beralin, Norsok

Article: B210250


  • Net weight : 2.1 KG/4.63 lbs
  • Gross weight: 2.5 KG/5.51 lbs


  • Reinforcement/Insert: Steel
  • Hole distance: 315mm/12.40 inch
  • Bolt hole : 12x20mm/0.47x0.79 inch


  • Total length: 350mm/13.78 inch
  • Length: 265mm/10.43 inch
  • Width: 115mm/4.53 inch
  • Height: 34mm/1.34 inch


Application areas:

  • Ship hull
  • Port
  • Slip
  • Cable
  • Pipeline
  • Dykdalb
  • Pump
  • Pontoon
  • Piers
  • Pillar

Aluminum anodes are mainly used in seawater. Can also be used in brackish water if the resistivity is not too high (<1 Ωm). When it comes to seawater, however, aluminum is more efficient & durable than zinc and magnesium. Compared to Zinc, it takes about 1/3 of the weight to protect the same surface. The efficiency of an aluminum anode is high, about 90%. All our anodes are die cast for the best quality.

Are you unsure of the type of material to use? Ask us, we can!

Technical data

  • Capacity: 2,680 Ah / kg(1215.63 Ah / lbs)
  • Consumption: 3.3 kg / A year(7.28 lbs / A year)
  • Specific weight: 2.78 kg / dm³(6.13 lbs / dm³)
  • Potential: -1 100 mV rel Ag / AgCl in seawater


Typical chemical composition, Norsok

Material% by weight

Zinc (Zn) min 2.5 max 5.75

Indium (In) min 0.015, max 0.04

Copper (Cu) max 0.003

Iron (Fe) max 0.09

Silica (Si) max 0.12

Kadmi. (CD) max 0.002%

Aluminum Residues
